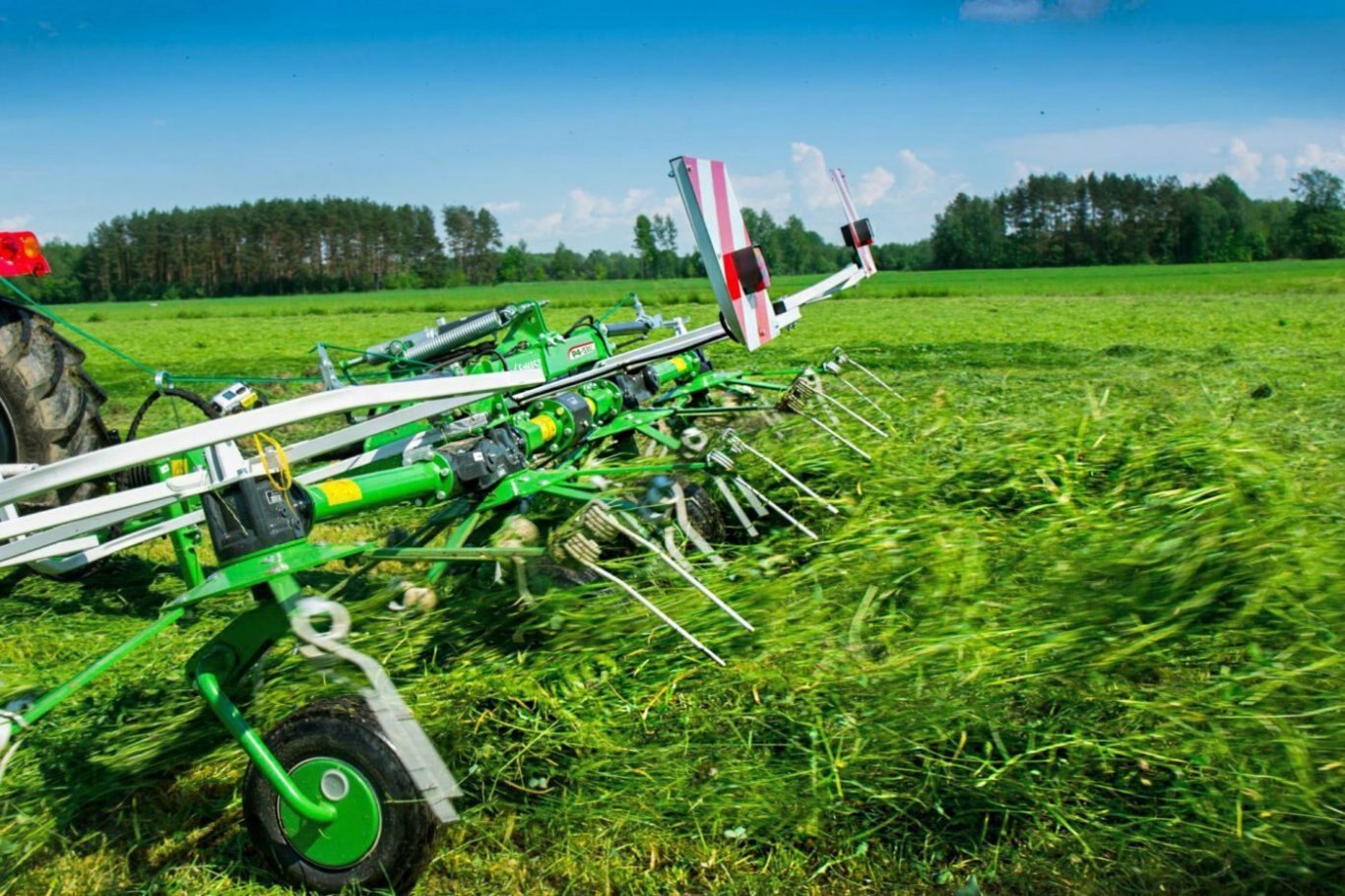

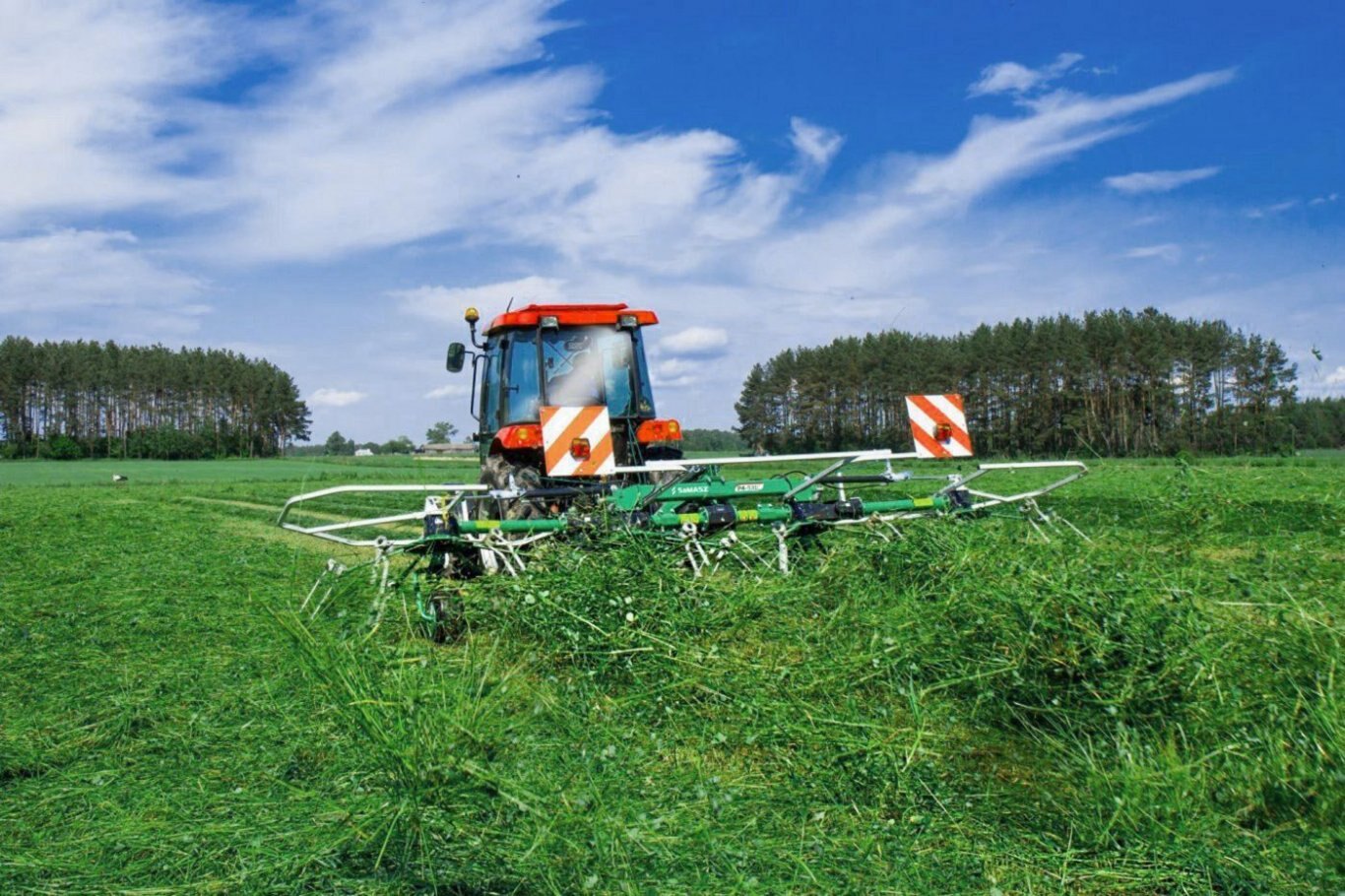

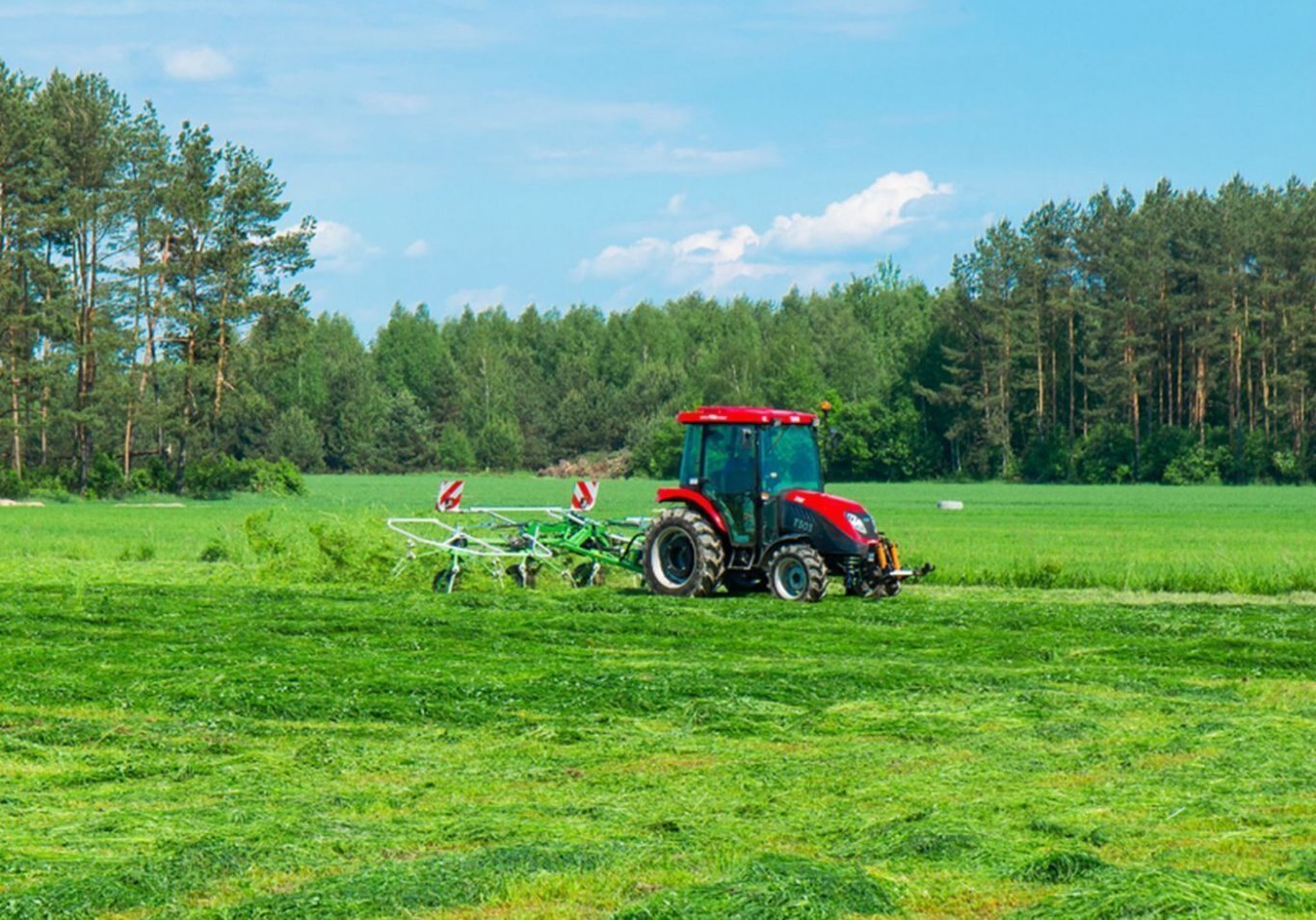

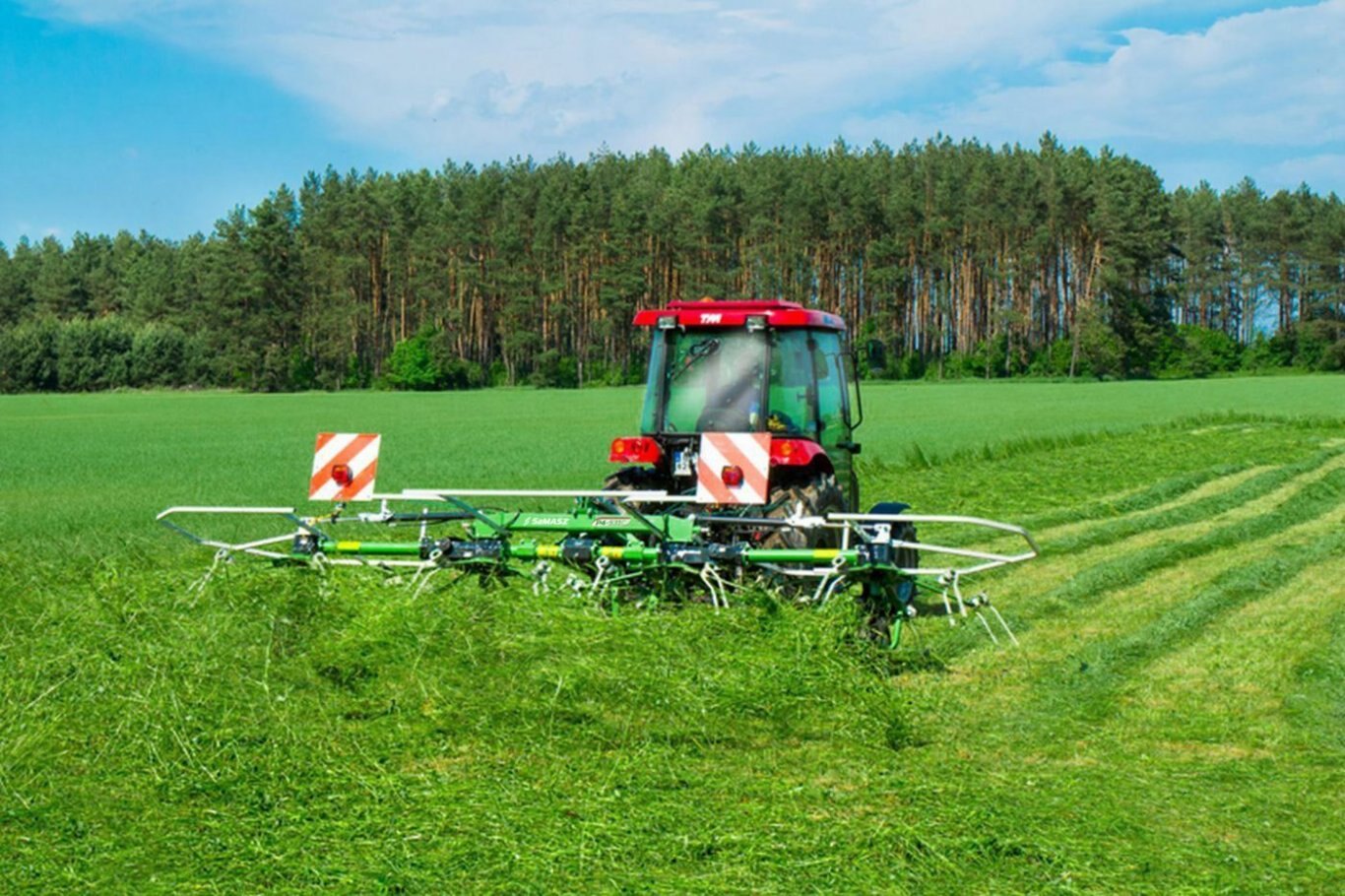

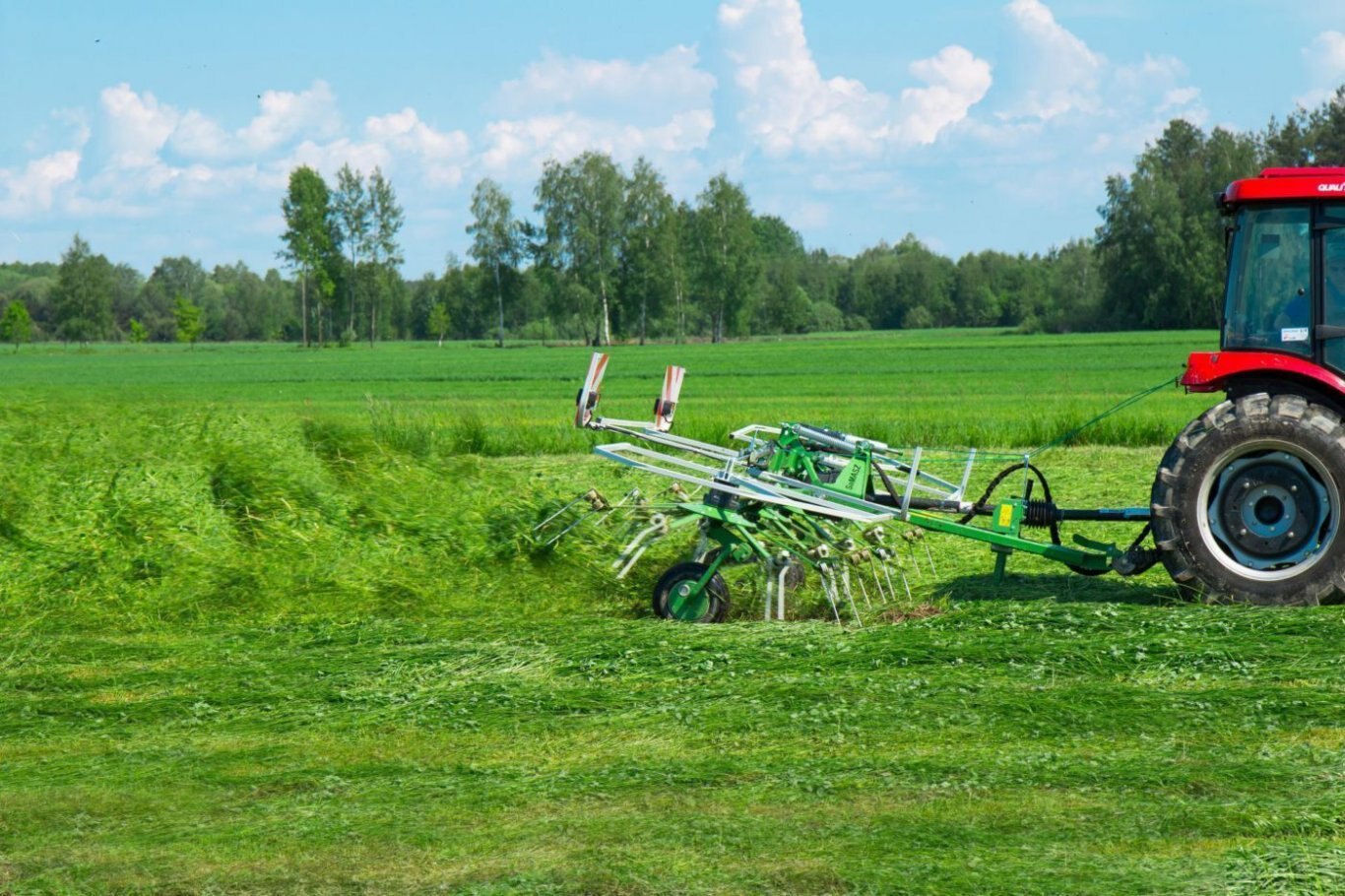

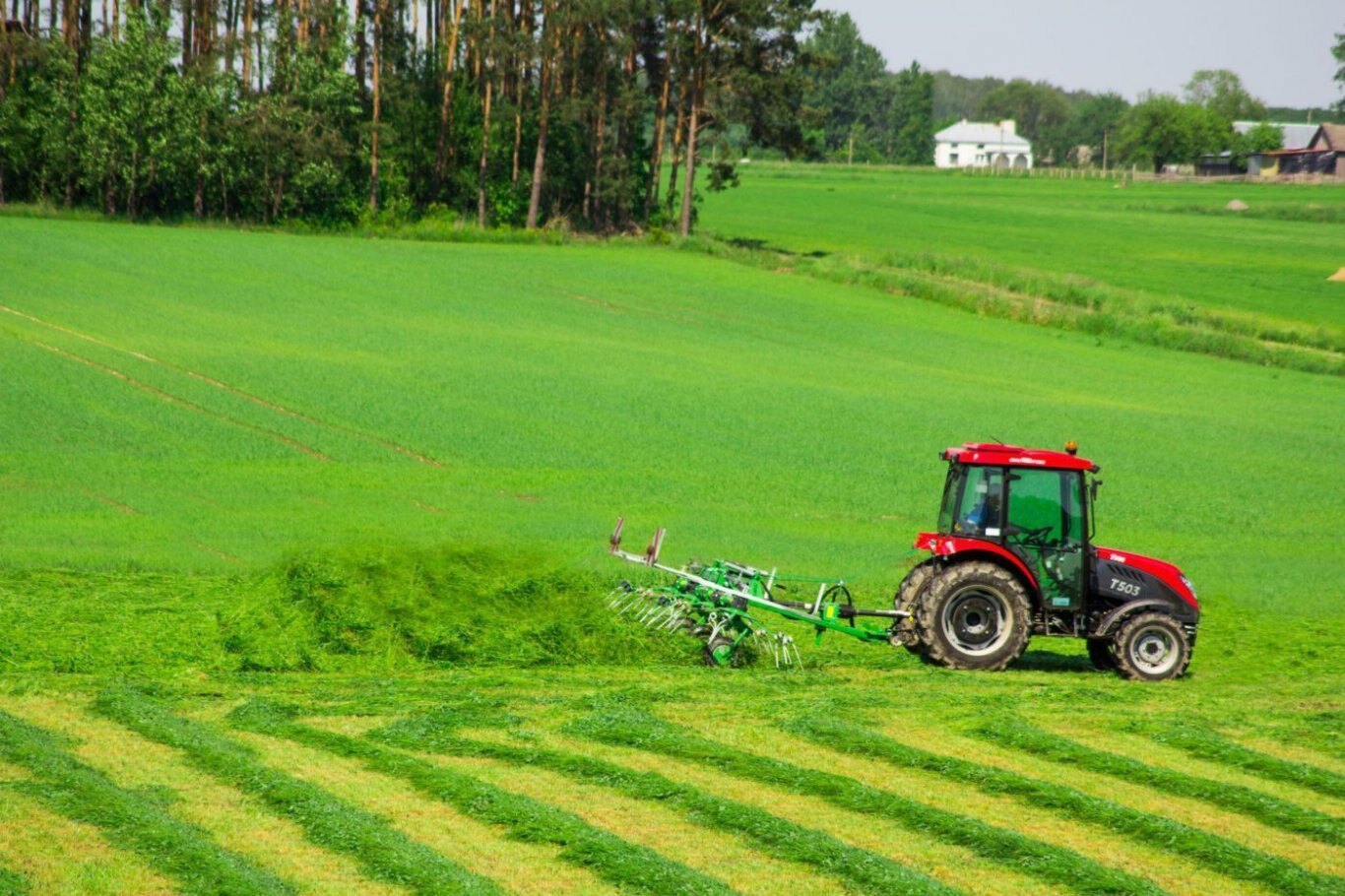

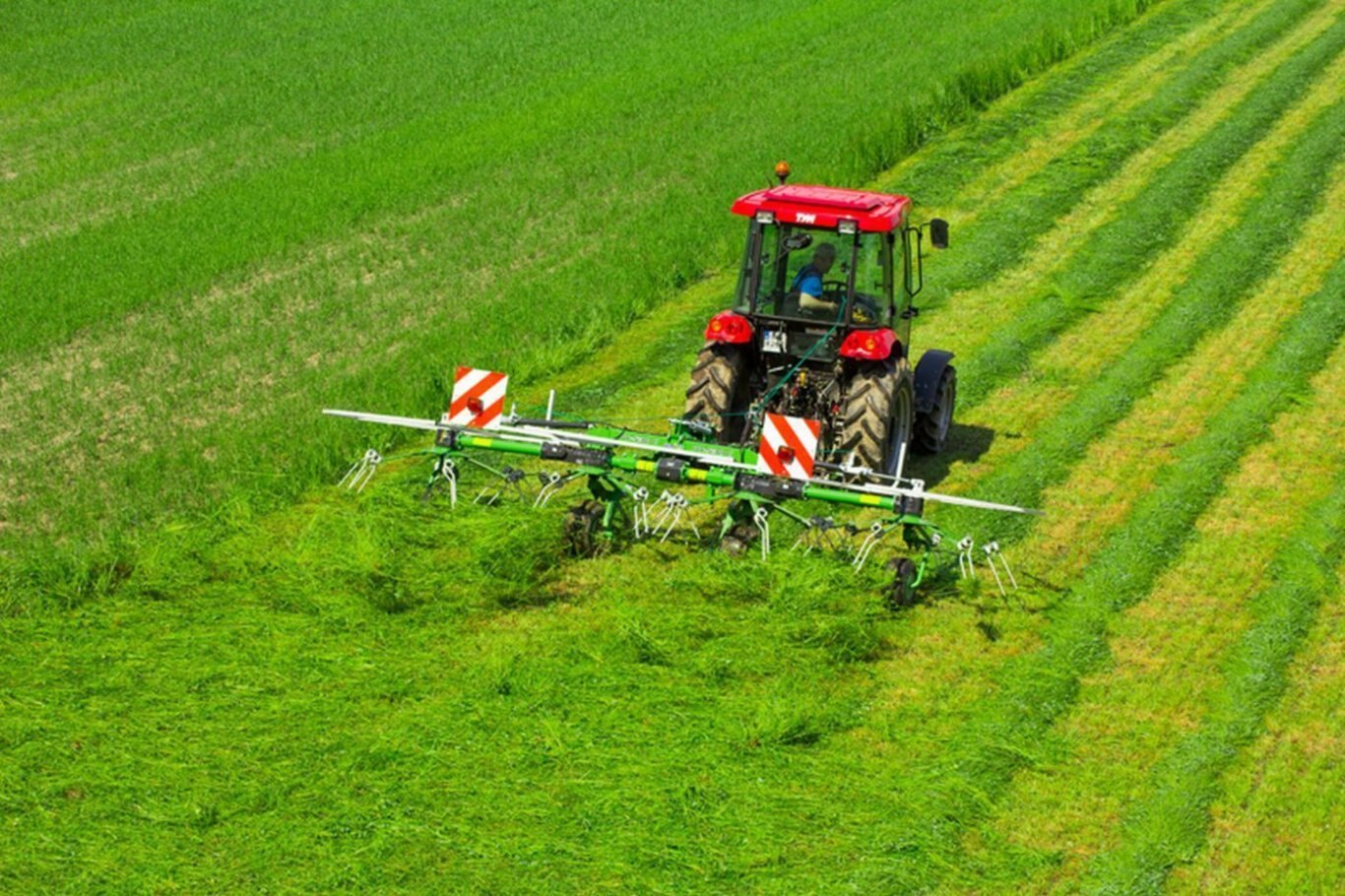

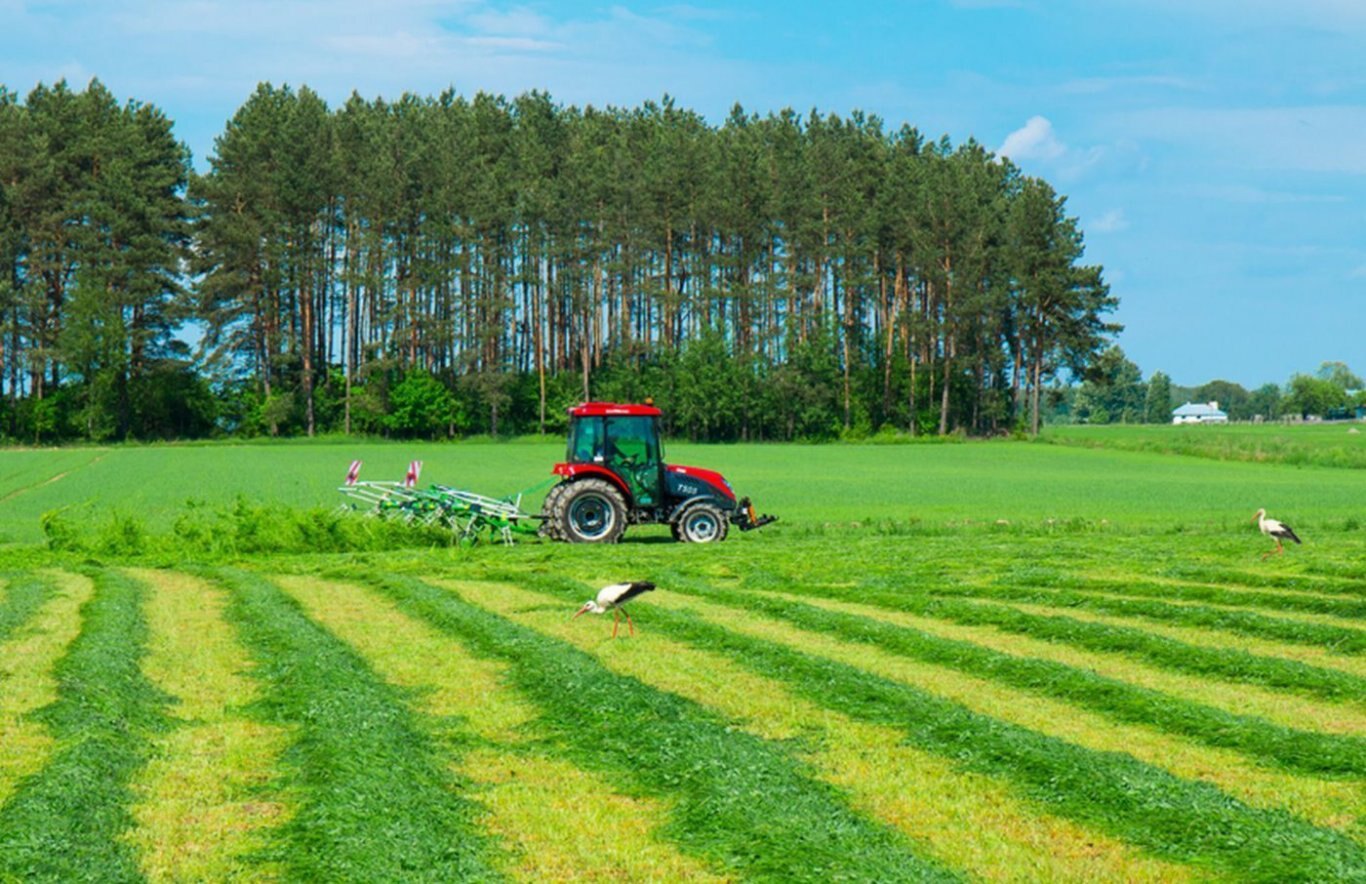

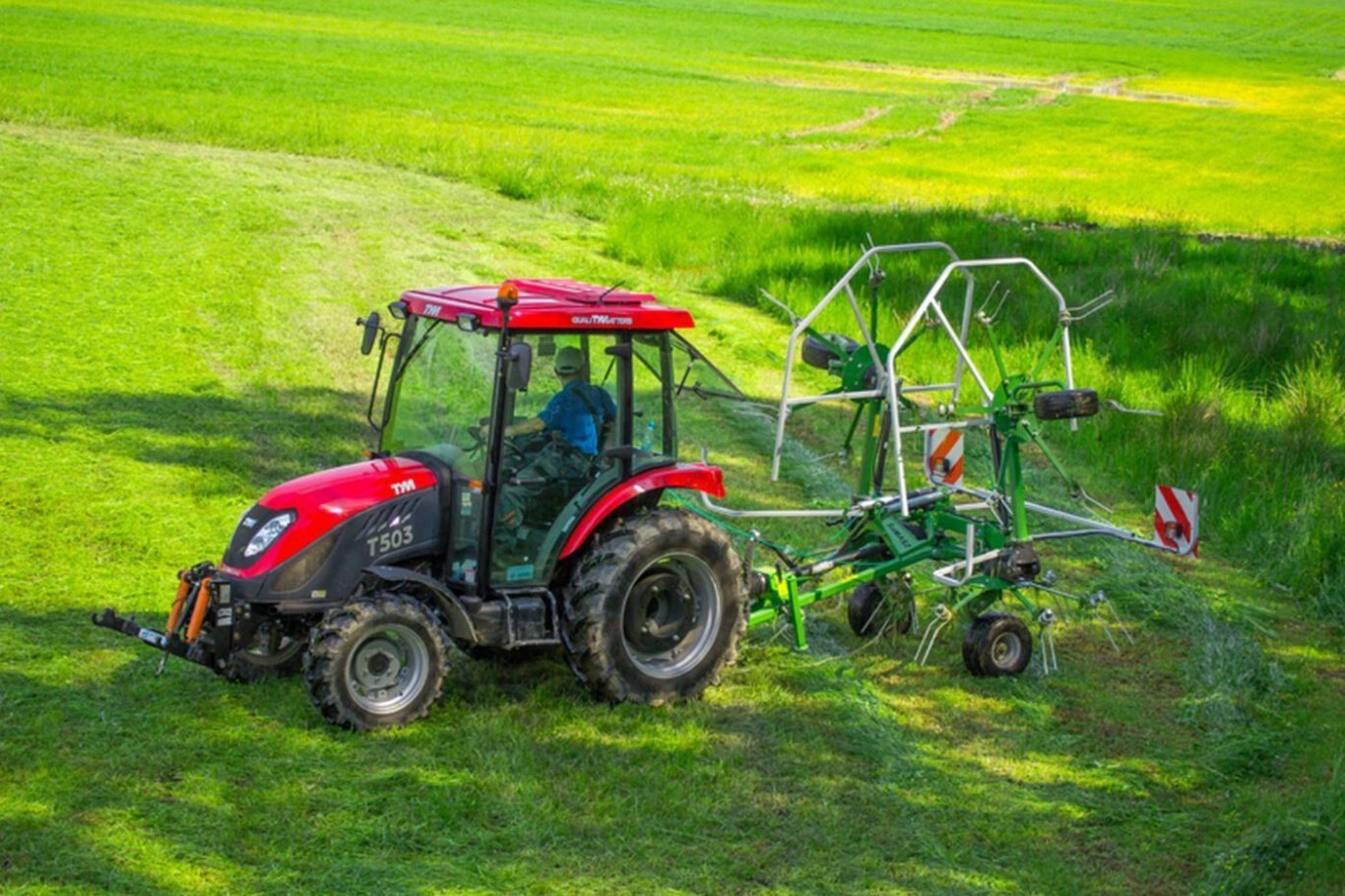

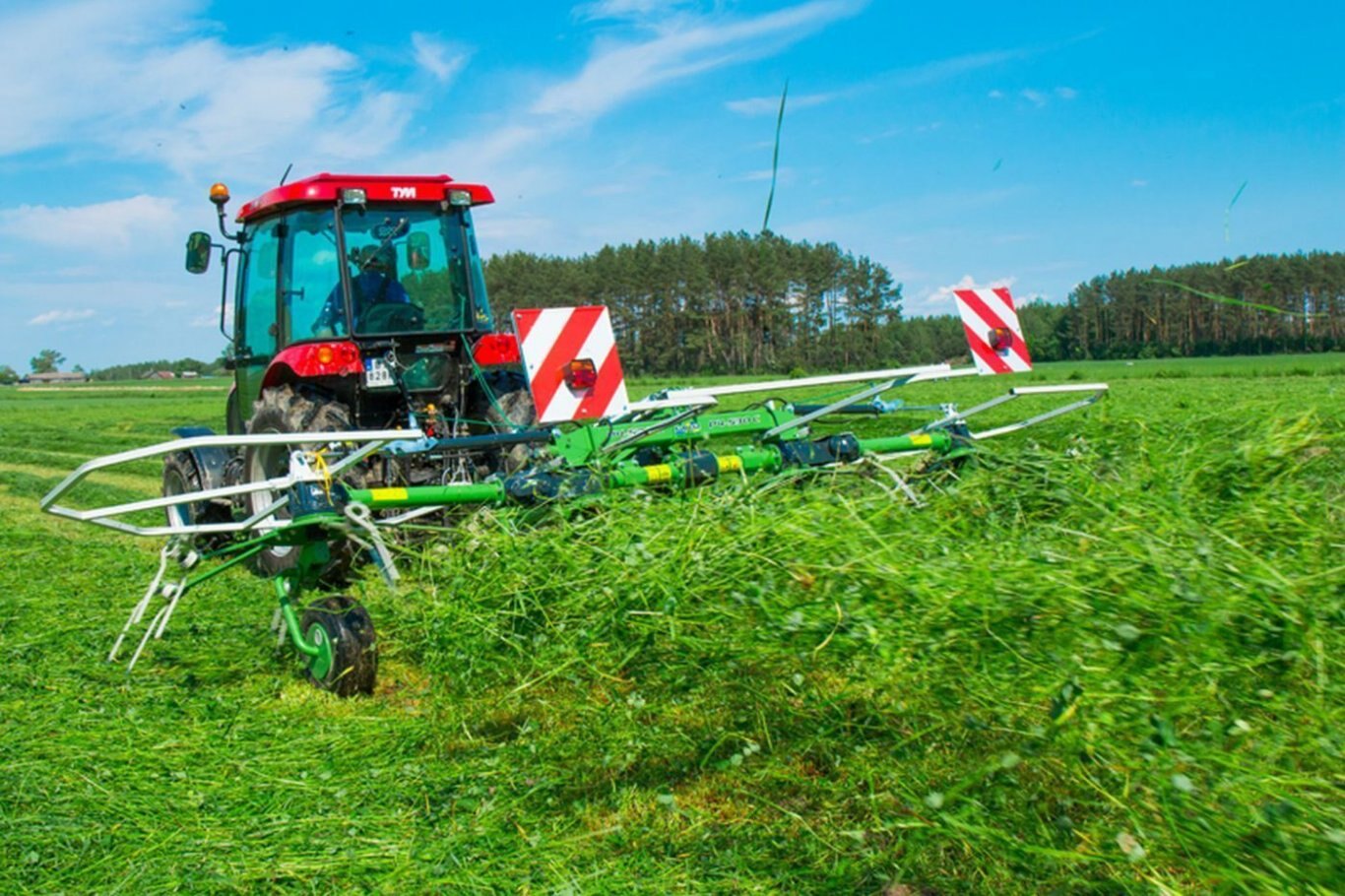

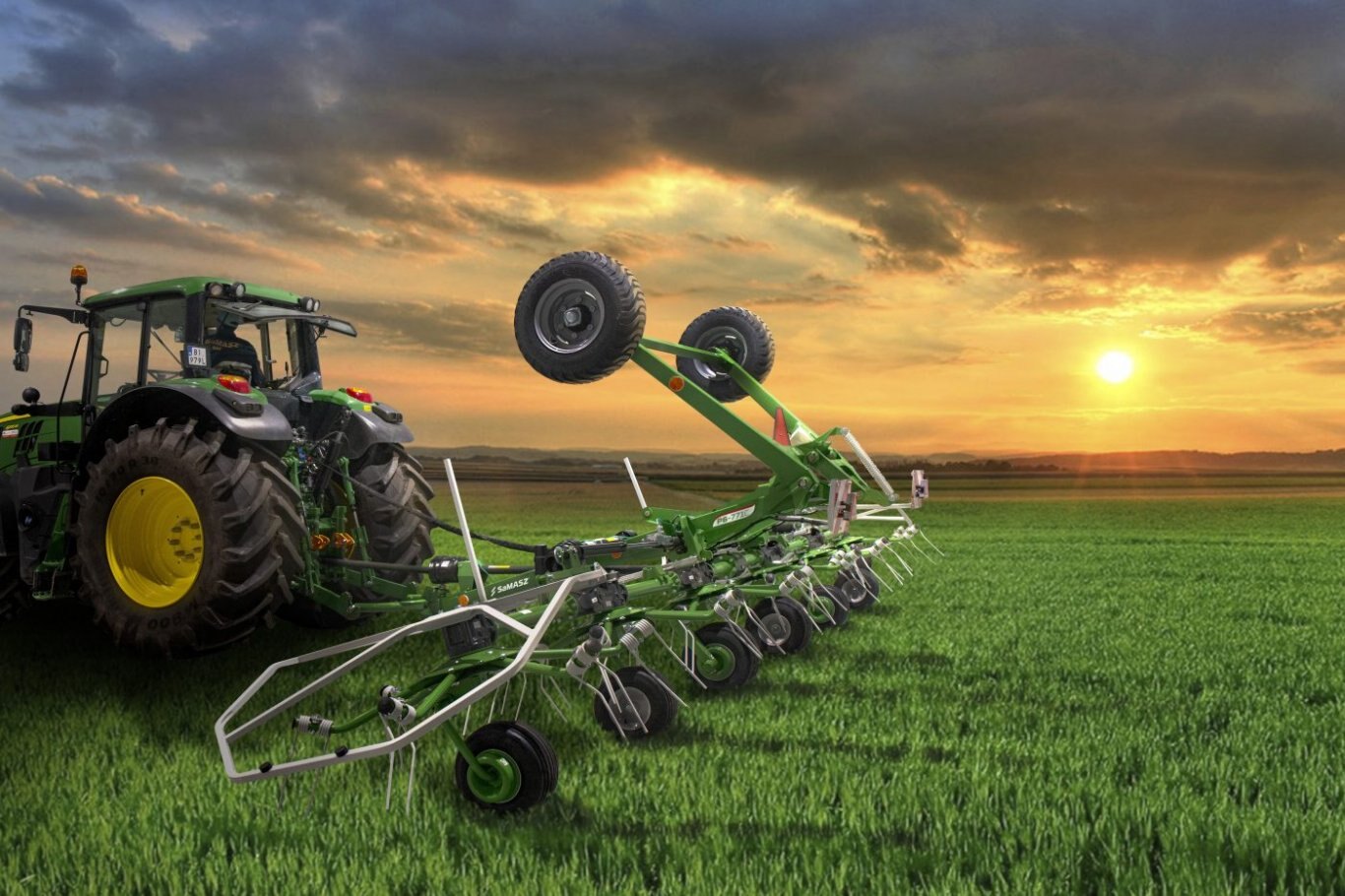

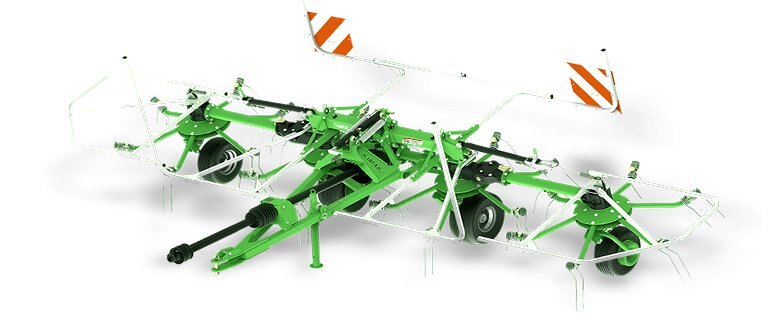

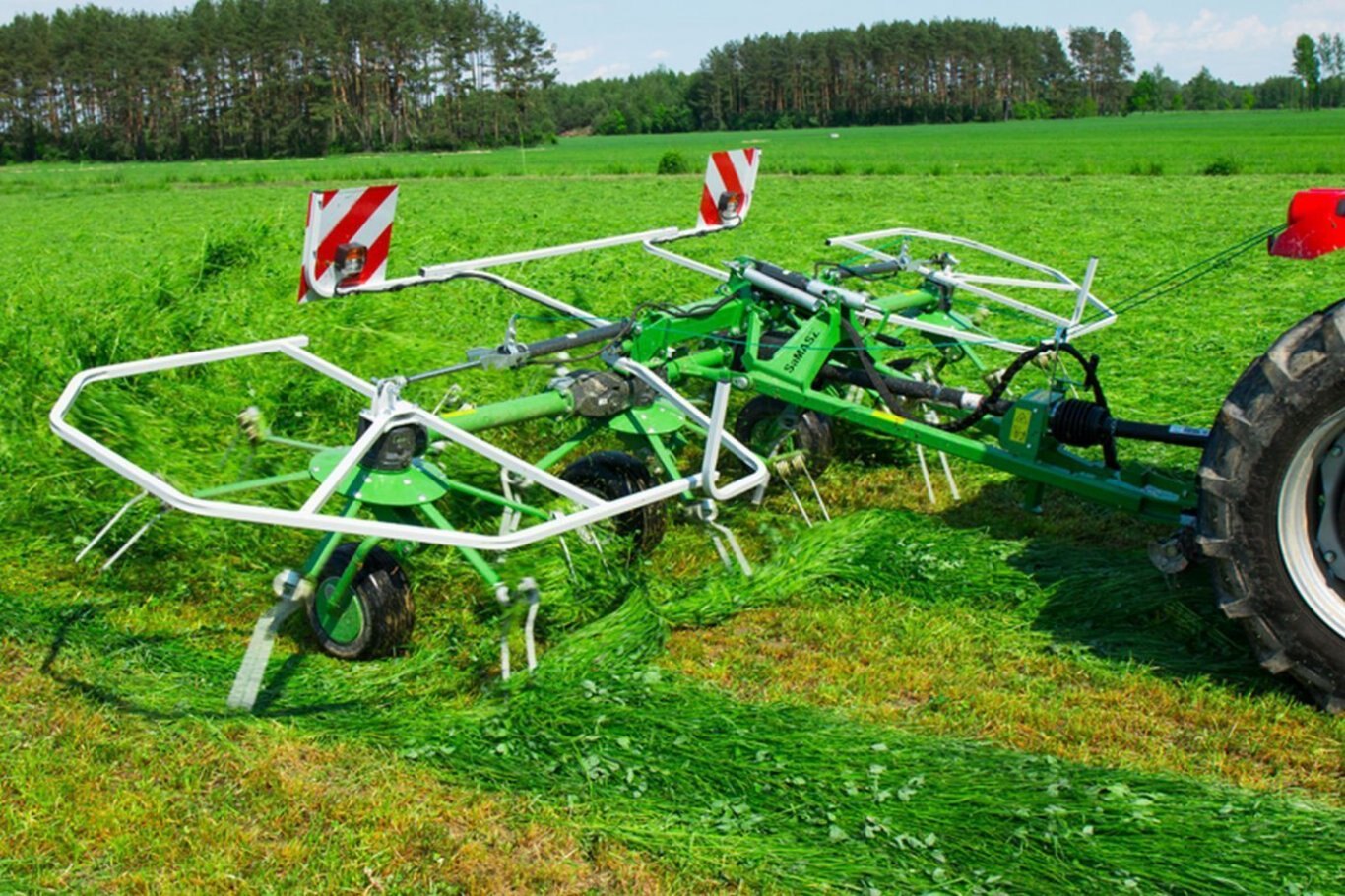

SaMASZ Trailed rotary tedders
Clean fodder and turf protection stepless adjustment of cutting height use of topping skids or double topping skids possible perfect ground following also on uneven and steep terrain lower ground pressure thanks to wide road wheels eliminates tedding thanks to application of conditioners Operator friendly use ...
Overview
Clean fodder and turf protection
|
Operator friendly use
|
Proven design
|
Servicing and spare parts
- low operating costs
- most of maintenance works can be done on operator’s own
Farmers’ trust
Specifications
Model
Trailed rotary tedders
Category Name
Hay Handling equipment
Year
2022
Sale Type
New
Manufacturer
SaMASZ
Quantity
0
Manufacturer Qty
0
Gallery
equipment
EQUIPMENT
Standard equipmentTine loss protection • Hydraulic folding • Adjustable angle of spread • Adjustable wheel position allows to work on field boundary • Warning plates • Road lights • PTO shaft • Oil operating gearboxes |
technical specification
TECHNICAL_SPECIFICATION
| P4 - 471 C | P4 - 531 C | P6 - 771 C | ||
|---|---|---|---|---|
| Working width | [m/ft] | 4,70 / 15’5” | 5,30 / 17’5” | 7,70 / 25’3” |
| Transport width | [m/ft] | 3,00 / 9’8” | 3,00 / 9’8” | 3,00 / 9’8” |
| Transport height | [m/ft] | 2,50 / 8’1” | 2,70 / 8’2” | 2,95 / 8’3” |
| The number of rotors | [pcs.] | 4 | 4 | 6 |
| Necessary hydraulic couplers | 2 x single acting | 2 x single acting | 2 x double acting | |
| Working capacity | [ha/h/ac/h] | ~ 5,60 / 13,85 | ~ 6,30 / 15,55 | ~ 9,20 / 23 |
| The number of rotor arms | [pcs.] | 6 | 6 | 6 |
| Diameter of the rotor | [m/ft] | 160 / 5’3” | 172 / 5’8” | 172 / 5’8” |
| RPM | 540 | 540 | 540 | |
| 3-point hitch cat. | drawbar | drawbar | drawbar | |
| Power demand | [HP] | from 30 | from 40 | from 60 |
| Tires (with inner tubes) | [pcs.] | 16 x 6,5-8 / 18 x 8,5 - 8 | 16 x 6,5 - 8 / 18 x 8,5 - 8 | 260 x 75 - 15,3 |
| Weight | [kg/lbs] | 680 / 1500 | 695 / 1530 | 1730 / 3800 |
| PTO shaft | tractor-tedder: no clutch, built-in: with friction clutch | tractor - tedder: no clutch, built-in: with friction clutch | tractor - tedder: no clutch, built-in: with friction clutch |
